PARAMETER |
參數 |
VALUE |
||
|
NTEP/OIML Accuracy class |
精度等級 |
NTEP III |
Non-Approved |
C3 |
|
Maximum no,of intervals(n) |
分度值 |
5000 single(1) |
1000 |
3000(2) |
|
Y=Ema*Vmin |
|
8000 |
1400 |
6000 |
|
Standard capacities(Emax) |
量程 |
0.6,1,2,3,6,10,15,20,30,35,60,100,200 |
||
|
Rated Output |
額定輸出 |
2.0 mv/v±0.1% |
||
|
Zero Balance |
零點平衡 |
±3% |
||
|
Creep after 30 minutes |
蠕變 |
±0.25% |
±0.030% |
±0.020% |
|
Nonlinearity |
非線性 |
|
|
|
|
Hysteresis |
滯后 |
±0.25% |
±0.030% |
±0.020% |
|
Repeatability |
重復性 |
±0.20% |
||
|
Creep error |
蠕變誤差 |
±0.030% |
±0.030% |
±0.017% |
|
Creep Return |
蠕變輸出恢復值 |
±0.030% |
±0.030% |
±0.017% |
|
Temp.effect on output |
靈敏度溫漂 |
±0.0026% |
±0.0026% |
±0.0014% |
|
Temp.effect on zero |
零點溫漂 |
±0.0015% |
±0.0015% |
±0.008% |
|
Safe Temp.Range |
可用溫度范圍 |
-10°C to + 40°C |
||
|
Temp.Compensated |
溫度補償范圍 |
-20°C to + 60°C |
||
|
Safe Overload |
安全載荷 |
150% |
||
|
Ultimate overload |
極限載荷 |
200% |
||
|
Input Impedance |
輸入阻抗 |
410 ohm±10 ohm |
||
|
Output Impedance |
輸出阻抗 |
350 ohm±3 ohm |
||
|
Rated Excitation |
推薦激勵電壓 |
10VDC/AC |
||
|
Maximum Excitation |
最大激勵電壓 |
15V DC/AC |
||
|
Insulation Resistance |
絕緣阻抗 |
>5000 M ohm（50VDC） |
||
|
Environmental proteciom |
防護等級 |
IP66 |
||

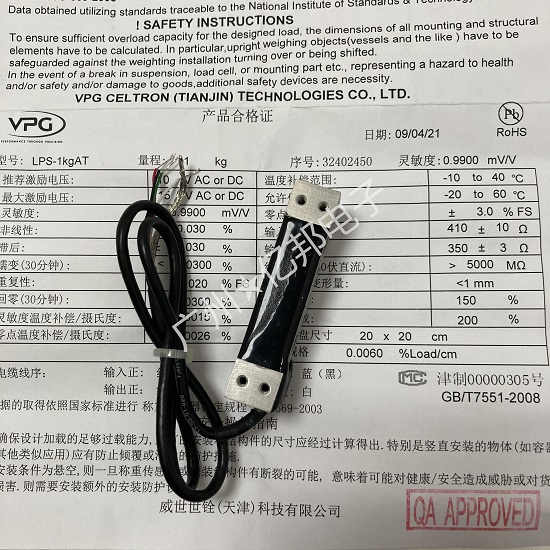

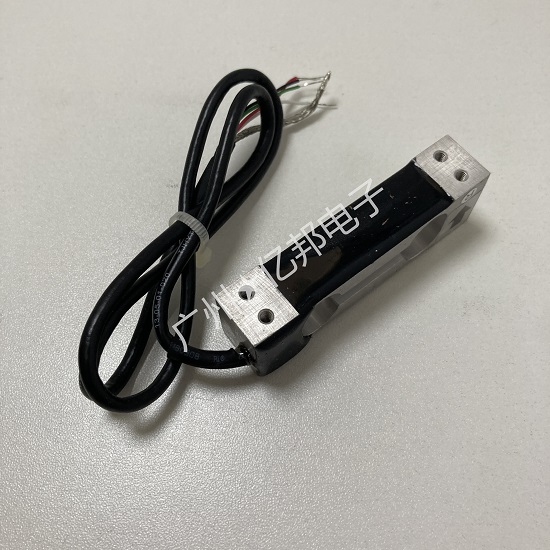

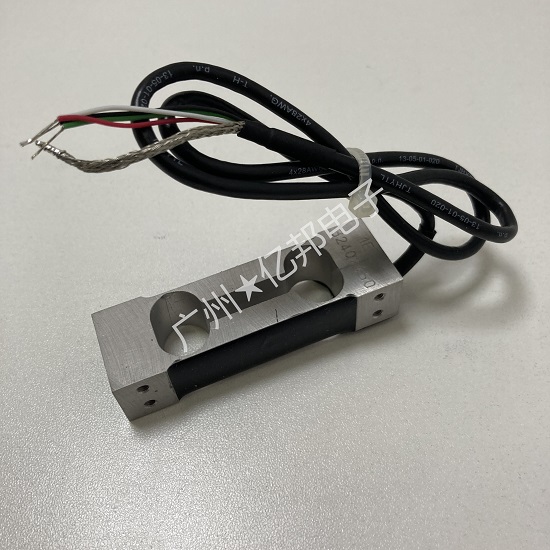

實物圖：
